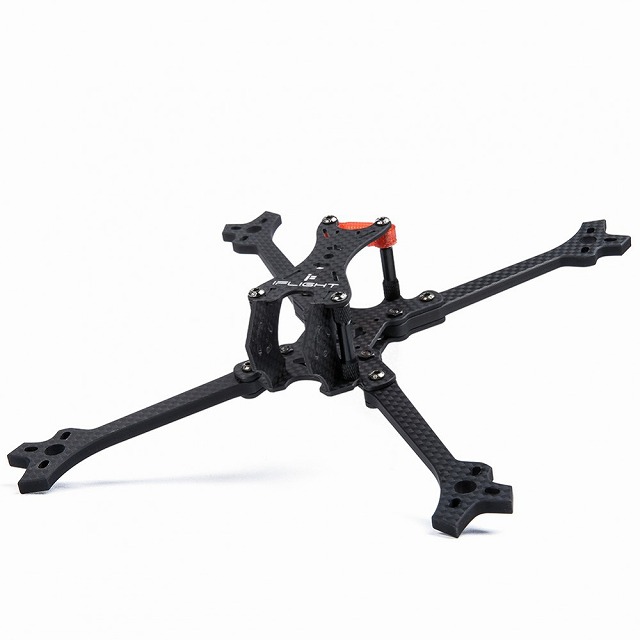

DOVE LITE V3 5‘’ FPV Race Frame は、iFlight社、初代「Dove」の軽量進化版「V3モデル」FPV Raceフレームです。
ホイールベース：２１８ｍｍ
フレーム重量：６５ｇ
Product Description
DOVE LITE V3 now is new optimize with some modern race feature, It's a trend by offering a small footprint light weight race frame without compromise the strength, adopt the popular Stretch X configuration, it fits both 30.5x and 20x stacks building options.
What has been upgraded in V3？
1. Bottom and Upper plates are changed to 2mm.
2. 3-hole Motor screw lock on the arms.
3. 65 grams without compromise strength
Features:
- Super lightweight (airframe weighs 65g only)
- Chamfered & 45°cut 3K carbon makes the frame extra strong
- Super durable 5mm thick Arms
- Popular Stretch X configuration
- 20*20,30.5*30.5 mount holes for all flight controllers
- Compact & easy repairing design
Specifications:
- Frame wheelbase: 218mm
- Frame weight: 65g approx
- Standoff Height: 28mm
- 5mm Arm thickness,7mm width,1.5mm vertical side plates
- The distance between vertical side plates: 19mm
- The distance between the top and upper plates: 25mm
- 2mm top, 2mm upper & 2mm bottom plate
- Mounting Holes: 20*20,30.5*30.5mm
Recommended parts(not included):
- Flight controller: SucceX F4/F7 Compatible controller
- Motor: XING 22XX or bigger size Motor
- Propeller: Max 5.1 inch propeller
- Camera: Micro Cameras(19mm width)
- Battery: 4S-6S Lipo battery
Package Included:
- 1pc * Dove LITE V3 FPV Race Frame
- 1pc * Antenna mount
