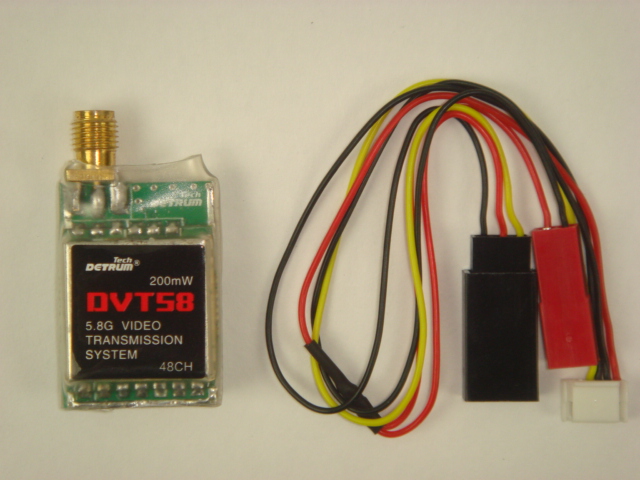

DETRUM 5.8G 200mW FPV Video Transmitter
諸元
Working Frequency: 5.8GHz ISM
Output Power: 200mW Channel: 48 CH
Input Voltage: DC 7V～17V
Supply Current: 260mA/12V
Video Input Impedance: 75Ω
Video Band Width: 8MHz
Video Format: NTSC/PAL
Working Temperature: -40~85℃
Dimension (L×W×H): 32×21×9mm
Weight: 10g (without antenna)
内容物
DVT58 200mW ×1
4-pin connector to DuPout connector and JST connector Cable ×1
日本語系統図
