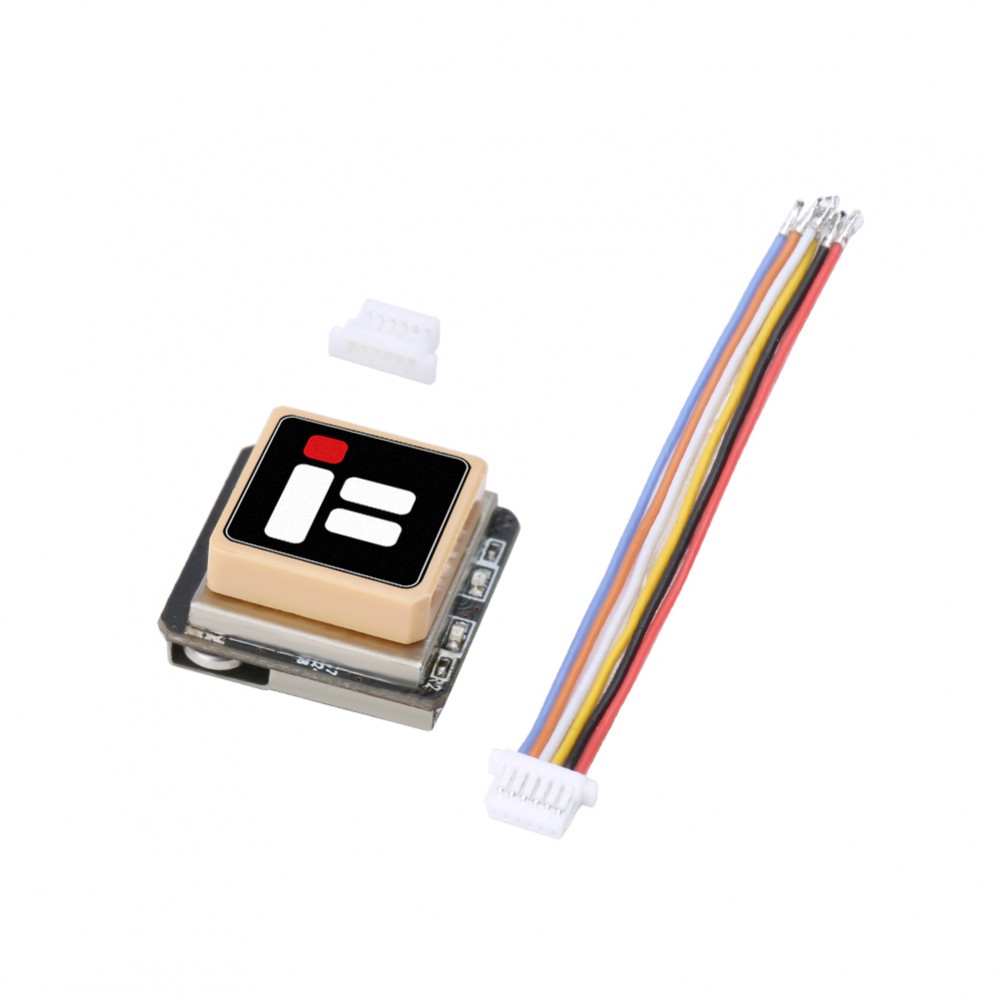

ＭＢＱ－５８８３－ＧＰＳ＆ＣｏｍｐａｓｓＶ２．０（ｉＦｌｉｇｈｔ）
Specifications:
GPS module: GPSSAM-M8Q
Frequencies： 72 channel
Compass module: QMC5883L
Baud Rate：4800bps-115200bps (Default - 9600bps)
Sensitivity: Tracking: -162dBm， Capture: -160dBm，Cold Start：-148dBm
Cold start：<29s
Hot start： <2s
Accuracy: Horizontal <2.5m average), SBAS < 2.0m average, Timepulse: RMS 30 ns
Maximum height: 50.000m
Maximum speed: 500 m/s
Speed accuracy: 0.05 m/s
Maximum acceleration: ≦ 4G
Refresh Rate: 10 Hz
GPS patch antenna size: 15 x 15 mm
Total dimensions：20 x 20 x 10.5 mm
Weight: 8g
Input Voltage： 3.3V-5V，current 25mA
GPS pin definition: RX/TX UART
Compass pin definition: SDA/SLA
Package included:
iFlight M8Q-5883 GPS *1 pc
SH-1.0-4Pin silicon wire *1 pc
