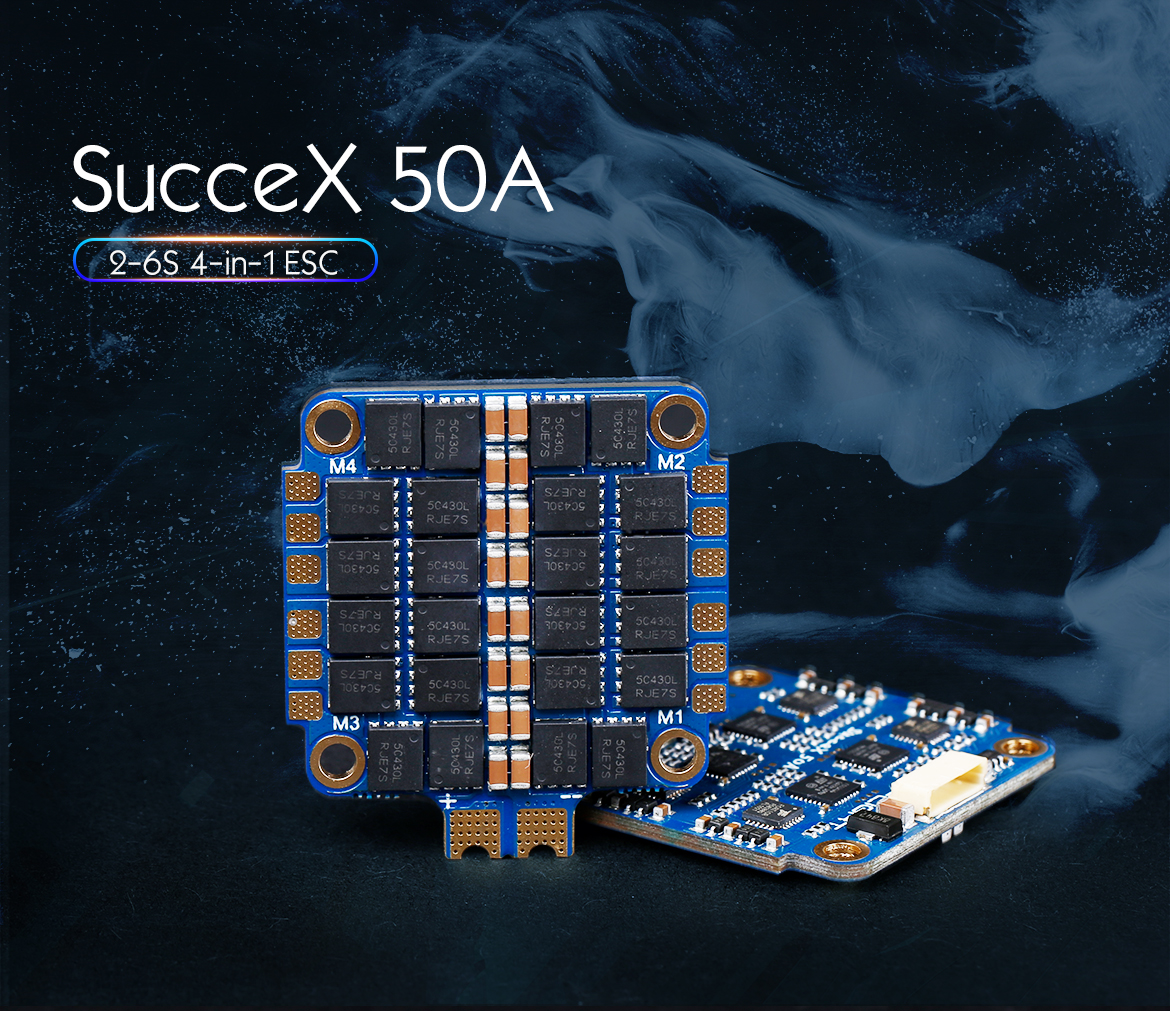

SucceX 50A 2-6S 4IN1 ESC
iFlight SucceX 50A 32bit BL Dshot1200 4in1 ESC was designed to give your motors smooth power with great stability and durability. Only high-quality components used and carefully arranged. 32bit 48mHz STM32F051 MCU, TDK MLCC Low ESR ceramic capacitors and NTMFS5C430NL MOSFET that provides high efficiency and better heat dissipation.
Standard 30.5*30.5 Φ4mm mounting holes; Vibration and shocks can be perfectly avoided by adding dampers; Rational layout design with extended solder pads ensures easy builds, fixes or adjustments;
Features:
- 8 layers double-sided PCB board;
- 4oz 1.6mm thick power board(0.9mm copper ratio),better operating load capacity;
- 32bit FO51K86 MCU, 48mHz maximum clock speed;
- TDK MLCC Low ESR ceramic capacitors;
- Top grade NTMFS5C430NL MOSFET;
- Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection
Specification:
- Dimension: 43*39mm
- Mounting Holes: 30.5*30.5mm/Φ3mm
- Weight:14.4g
- Supports 2-6S lipo input
- STM32F051 MCU, 48Mhz Runs BLHELI 32.X Firmware
- Current sensor: Yes
- BEC: No
- Supports: DShot DShot150/300/600/1200/MultiShot/ OneShot etc.
- Target: iFlight-BL32-4IN1
RECOMMENDATION:
- No additional capacitor needed up to 5S!
- To encounter back EMF and ensure the longevity of your electronics, min. 220uF Cap 35V for 4-5S, 50V for 6S on your main lead!
Package Included:
- 4-in-1 ESC
- Power cables & ESC signal wires *1set
-1 x 35V 220uf capacitor
