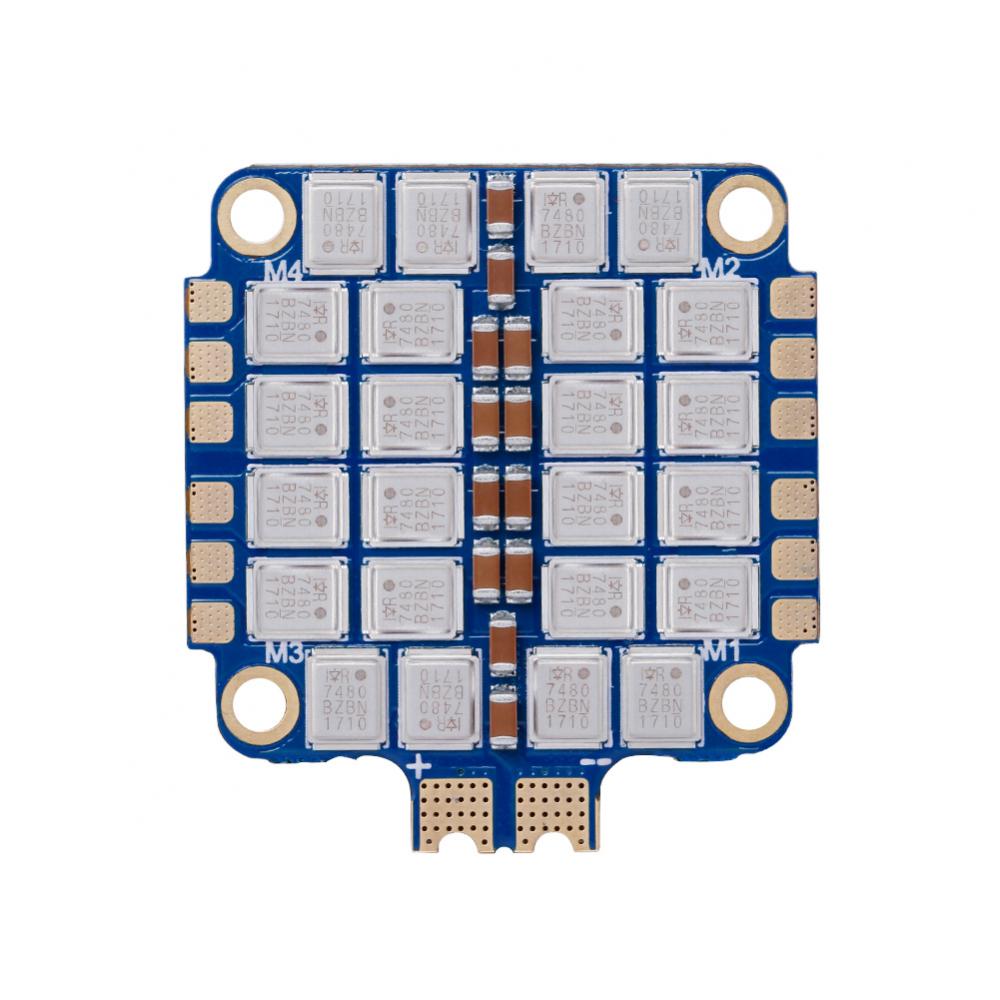

SucceX 60A 2-6S 4IN1 V2 ESC
Product Description
iFlight SucceX 60A V2 Plus 32bit BL Dshot1200 4in1 ESC was designed to give your motors smooth power with great stability and durability. The 32bit 48mHz 3-IN 1 STM32F051 MCU, Metal MOSFET, TDK MLCC Low ESR ceramic capacitors provide high efficiency and better heat dissipation.
Standard 30.5*30.5 Φ4mm mounting holes; Vibration and impact can be perfectly avoided by adding dampers; Rational layout design with extended solder pads ensures easy fixes or adjustments; Countersunk holes on the soldering pad enable each layer board can be powered.
Excellent hardware, optimized circuit, and high-performance components enable SucceX 60A V2 Plus 4in1 ESC to respond efficiently. All in all, it brings faster-responding speed and smoother flying experience!
Features:
- 8 layers single-board stacking PCB board;
- 4oz 1.6mm thick power board(0.9mm copper ratio),better operating load capacity;
- 32bit FO51K86 MCU,48mHz running speed;
- TDK MLCC Low ESR ceramic capacitors;
- Top grade metal MOSFET;
- Rational layout, countersunk holes on extended motor soldering pad enable each layer board can be powered.
Specification:
- Dimension:43x39mm
- Mounting Holes: 30.5*30.5mm/Φ4mm
- Weight: 13.4g
- Supports 2-6S lipo input
- STM32F051 MCU, 48Mhz Runs BLHELI 32.X Firmware
- Current sensor: Yes
- BEC: No
- Supports: DShot DShot150/300/600/1200/MultiShot/ OneShot etc.
- Target: iFlight-BL32-4 in 1
RECOMMENDATION:
- No additional capacitor needed up to 5S!
- But to encounter back EMF and ensure the longevity of your electronics, min. 220uF Cap 35V for 4-5S, 50V for 6S on your main lead!
Package Included:
- SucceX 60A V2 4-in-1 ESC * 1pc
- Power cables & ESC signal wires * 1set
